Desiro Class 450 EMU LokSound V5 Sound Decoder

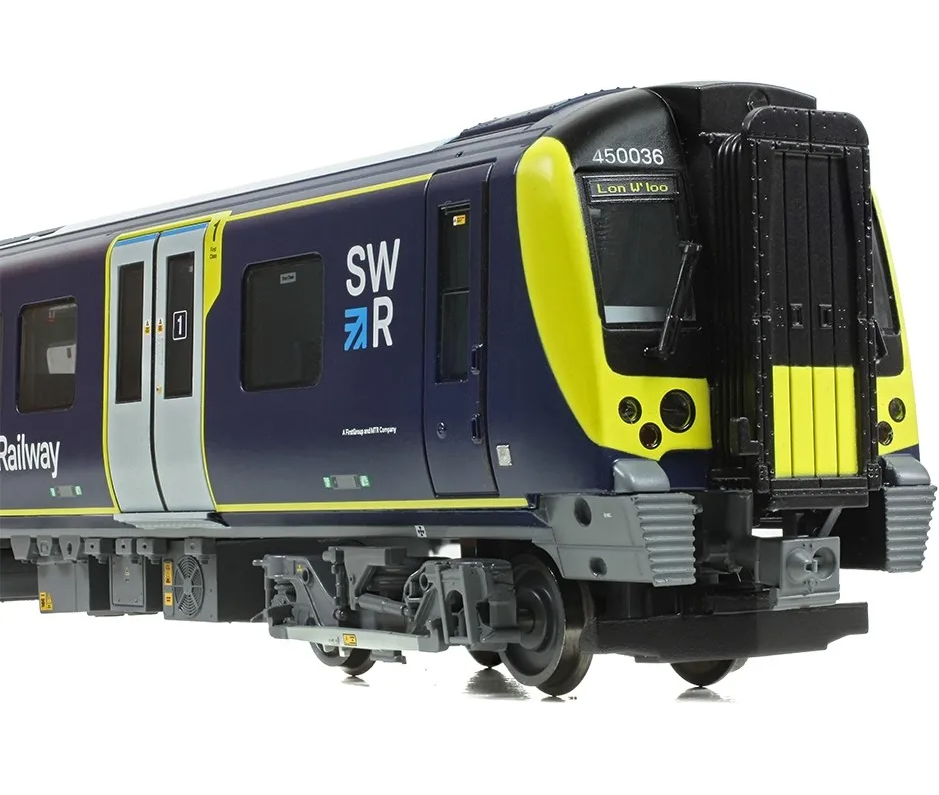

Siemens developed four-car electric multiple units called Class 450 on the Desiro platform. The vehicles, which were purchased from 2001 onwards, have an output of 1500 kW and draw their operating voltage from the side power rail next to the track. The maximum speed of the 127 vehicles is 160 km/h. The four-car units are used on London's busy suburban routes.
Tech Specs:
- 1.5 Amp maximum load
- Motor control with 50 kHz switching frequency
- 3 new, individually adjustable brake controls
- Two-stage heavy duty simulation
- NMRA/DCC with 14, 28, 128 speed steps
- Automatic RailComPlus® detection
- 2-digit & 4-digit addresses
- Up to 32 functions in DCC operation
- DCC operation with RailComPlus®, M4, Motorola® and Selectrix®
- Updateable with ESU-LokProgrammer
Functions:
Sound:
- 10 independent sound channels
- Digital class "D" amplifier with up to 3 W power
- Each channel in 16-bit resolution with 31250 kHz sample rate
- 32 Bit Processor
- 128 MBit storage capacity
- Speaker impedance 4 - 32 Ohms
- 11x15mm "sugar cube" speaker with adjustable sound capsule set fitted
Please note, the sound you hear will vary depending on the type and positioning of the loud speaker(s) chosen. Alternatives to the standard "sugar cube" are available.
