Class 10 Diesel LokSound V5 Sound Decoder

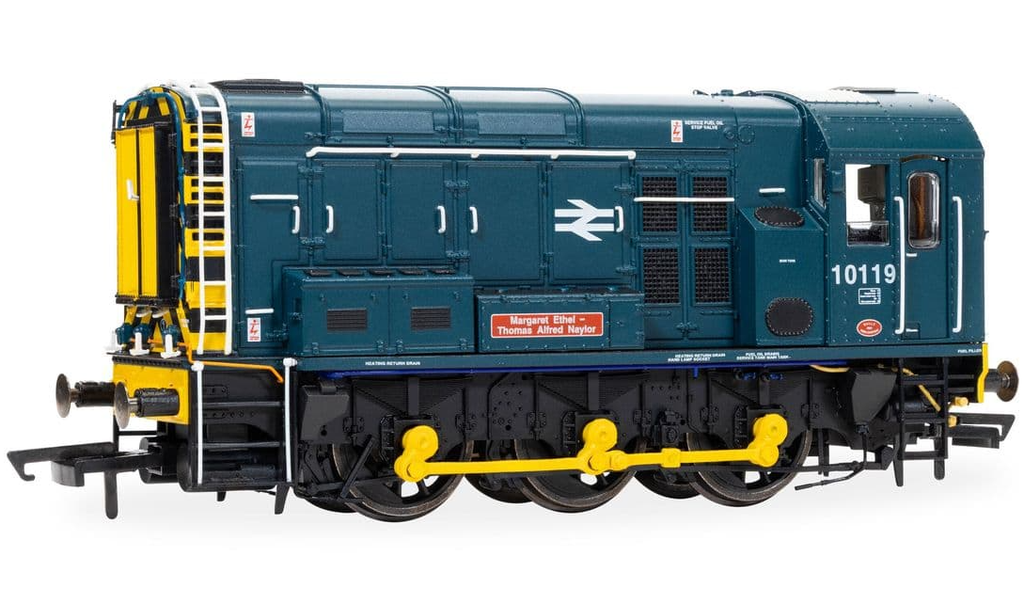

The BR Class 10 was a British diesel locomotive developed by British Railways in the 1950s. A total of 26 locomotives were built between 1958 and 1961. They were based largely on the successful BR Class 8, but were fitted with a more powerful engine.
The locomotives were mainly used for freight services and heavy shunting duties. With an output of around 1,750 horsepower, they were quite powerful for their time. Despite their robust design, the Class 10 locomotives had relatively short careers. Most of them were withdrawn from service and scrapped during the 1970s.
Tech Specs:
- 1.5 Amp maximum load
- Motor control with 50 kHz switching frequency
- 3 new, individually adjustable brake controls
- Two-stage heavy duty simulation
- NMRA/DCC with 14, 28, 128 speed steps
- Automatic RailComPlus® detection
- 2-digit & 4-digit addresses
- Up to 32 functions in DCC operation
- DCC operation with RailComPlus®, M4, Motorola® and Selectrix®
- Updateable with ESU-LokProgrammer
Functions:
Sound:
- 10 independent sound channels
- Digital class "D" amplifier with up to 3 W power
- Each channel in 16-bit resolution with 31250 kHz sample rate
- 32 Bit Processor
- 128 MBit storage capacity
- Speaker impedance 4 - 32 Ohms
- 11x15mm "sugar cube" speaker with adjustable sound capsule set fitted
Please note, the sound you hear will vary depending on the type and positioning of the loud speaker(s) chosen. Alternatives to the standard "sugar cube" are available.
